Application purposes
- For masonry walls
- For installation in part- or room-height prewall installations
- For installation in room-height installation walls
- For floor-standing and wall-hung WCs
- For dual flush

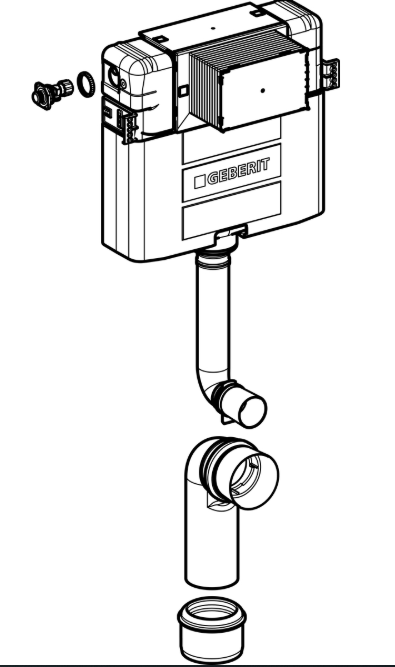

- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Immediate post flush possible with factory setting
- Welded flush bend
- Water supply connection on the left or rear left
- Protection box for service opening can be cut to length
- Water supply connection Rp 1/2" - R 1/2", compatible with MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- Connection set for WC, ø 90 mm
- Connection bend,ø 90 / 110 mm
- 2 protection plugs
- 2 fixing brackets
- Fastening material
| Flow pressure | 0.1-10 | bars |
| Flush volume factory settings | 6 and 3 | l |
| Flush volume large | 4.5/6/7.5 | l |
| Flush volume small | 3-4 | l |
